Why Are Reactors Essential For Resin Synthesis?

In the resin industry, whether it's alkyd resin, epoxy resin, acrylic resin, unsaturated resin or polyurethane resin, reactor is always the most critical piece of equipment in the entire resin production line.

Why is the reactor the most important equipment in resin production line?

1. It is the critical location that determines whether the reaction can proceed successfully

The synthesis of resins involves polymerization or polycondensation reactions, which are extremely sensitive to the following conditions:

• Temperature profile
• Reaction pressure
• Uniformity of material mixing
• Heat transfer efficiency
• Reaction time

All of these are achieved and controlled by the reactor.

2. Key equipment affecting the final quality of the resin

The quality of resin largely depends on the control of the reaction process, such as:

• Molecular weight
• Viscosity stability
• Whether the color darkens
• Whether there are excessive side reactions

A stable reactor with precise temperature control and good heat transfer can significantly improve the consistency of resin quality.

3. Impact on production efficiency and costs

The heating method, jacket area, and stirring efficiency of the reactor directly affect:

• Heating rate
• Reaction time
• Distillation efficiency
• Cooling time

A good reactor=shorten production cycle=lower costs+higher yield.

4. Core safety and protection equipment

The resin production process often involves:

• High temperatures (180-270℃)
• Organic solvents (such as xylene, butanol)
• Pressure fluctuations
• Exothermic reactions

Reactor is equipped with pressure relief valves, safety valves, nitrogen blanketing, temperature control systems, and explosion-proof motors to ensure production safety.

What are the differences in reactor requirements for different resins?

The processing requirements for different resins vary significantly; therefore, the structure, heating method, and stirring mechanism of the reactor also differ.

1. Alkyd resin reactor

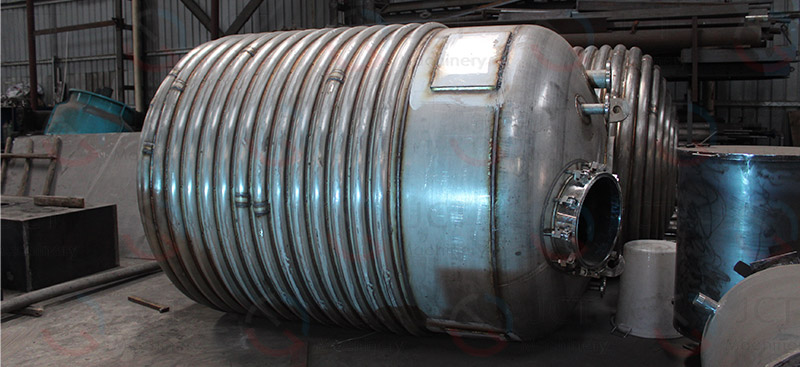

External coil or jacket reactor (suitable for high-temperature heat transfer oil)

Powerful stirring system (anchor type+wall scraping)

Water-cooled condenser system

Wall-scraping device to prevent scaling

2.Epoxy resin reactor

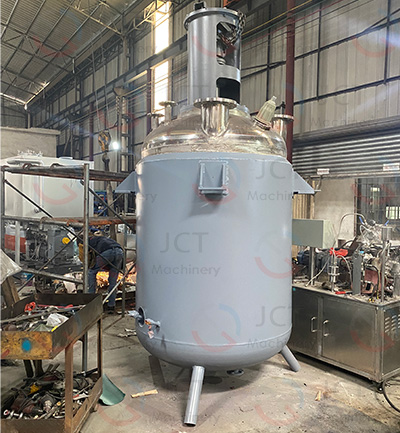

Jacketed heating with precise temperature control

Anchor or paddle type agitator

Structure designed for uniform temperature distribution (to prevent yellowing)

3. Acrylic resin reactor

Jacketed heating and cooling system

Equipped with variable frequency stirring (suitable for different viscosity stages)

Optional reflux condenser system

4. Unsaturated polyester resin reactor

High-efficiency cooling coils

Precise temperature control valves

Agitator uses an anchor-type design with a baffle system

5. Polyurethane resin reactor

High-seal reactor (mechanical seal)

Nitrogen protection system

Gentle stirring to prevent bubble formation

Each type of resin requires a specific reaction process, so it is essential to select a reactor designed for that particular process.
