Urea-Formaldehyde Resin Production Line EPC Solution

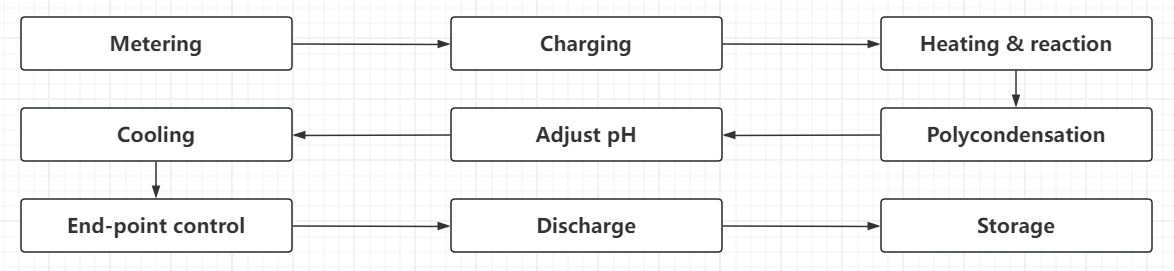

Urea-formaldehyde Resin Production Process

urea-formaldehyde resin production flow

Equipment	Function
Reactor	Serves as the core of the polymerization process, facilitating polycondensation through the application of heat and pressure
Shell-and-tube condenser	Cools formaldehyde vapor and steam to facilitate reflux
Fractionation column / water separator	Separates gas and liquid phases, discharging water generated during the reaction
Vacuum system	Dehydrates the mixture during the final stages of the reaction to increase resin viscosity
Filter	Removes gel particles or impurities from the finished product
Automatic control cabinet	Monitors temperature, pressure, stirring speed, and pH value

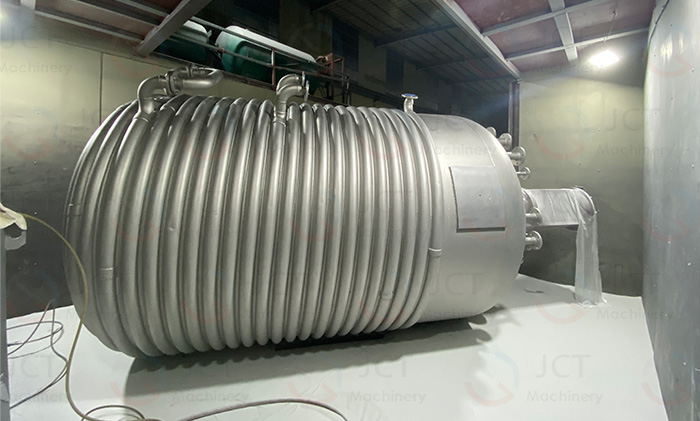

urea-formaldehyde resin reactor

Automated closed-loop pH control: A primary concern for customers is the risk of over-acidifacation, which can result in the entire batch being scrapped. Our equipment implements an interlocked function that combines "real-time pH monitoring" with "automated alkali dosing".
Reaction endpoint alarm: By integrating torque monitoring (via agitator current) or ultrasonic viscosity detection, the system automatically triggers an alert and initiates forced cooling once the target viscosity is reached.

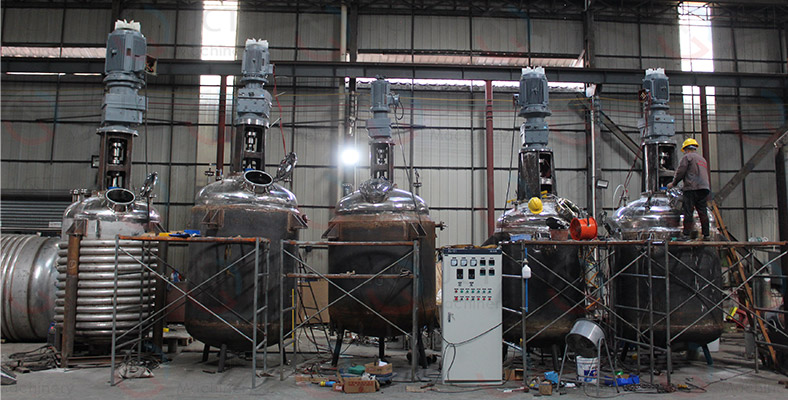

urea-formaldehyde resin production line reactor

Contact our engineer to schedule a free equipment trial: +86-181 3837 3963 (Whatsapp, Wechat), george820606@gmail.com.
