In-depth Analysis Of Temperature Control Systems For Resin Reactor

In the synthesis of polymer materials such as unsaturated resins, epoxy resins, alkyd resins, and polyurethanes, precise control of the reaction temperature is the lifeline determining both product quality (e.g., molecular weight distribution, transparency, and viscosity specifications) and production safety.

As a professional manufacturer of reaction vessels and chemical equipment, we not only supply high-performance resin reactors but also possess comprehensive capabilities for the turnkey delivery of resin production lines. This article provides an in-depth breakdown of the four core modules and engineering design aspects of the temperature control system for resin reactors.

Heat Exchange Structure Design: Precisely Matched to Material Characteristics

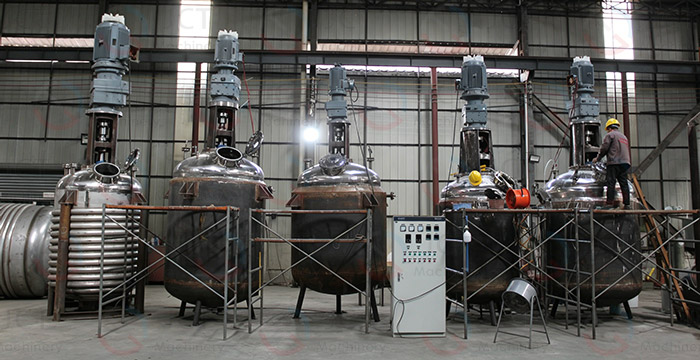

The structural design of the reactor vessel body is fundamental to achieving efficient heat transfer. To accommodate various resin systems and process scales, we offer a range of customized heat transfer structure solutions for our turnkey projects:

• External coils: The most common choice for industrial-grade resin reactors. Compared to traditional jackets, the half-pipe structure offers superior pressure resistance and higher medium flow velocities; it significantly enhances heat transfer coefficients and prevents flow short-circuiting, making it particularly suitable for high-temperature thermal oil circulation systems.
• Internal coils: In applications where the material has good fluidity but the external heat transfer area alone is insufficient, the addition of internal serpentine coils—which come into direct contact with the material—enables rapid cooling and heat exchange.
• Jackets: Characterized by thin plate construction, high pressure-bearing capacity, and strong flow turbulence, jackets effectively improve heat transfer efficiency in large-scale reactors (exceeding 10m³) while reducing the equipment's overall weight.

Temperature Control Medium and Circulation System: Highly Efficient Integration of Heating and Cooling

To meet the varying temperature requirements across different stages of resin synthesis—preheating, exothermic holding, and cooling/crystallization—we equip our turnkey projects with integrated circulating temperature control systems:

Automated Algorithms and Safety Control: Mitigating Lag and Eliminating Runaway Polymerization

Resin reaction systems are characterized by strong nonlinearity and significant time delays; traditional on-off control is highly prone to causing overheating. Our turnkey control system features deep optimization at both the hardware and algorithm levels:

1. Cascade PID Control

The system simultaneously monitors the temperature of the material inside the vessel and the temperature of the medium at the jacket inlet. The primary controller dynamically sets the jacket temperature based on the target material temperature, while the secondary controller rapidly adjusts the valve opening, effectively overcoming heat transfer lag associated with high-viscosity materials.

2. PLC-Based Automated Process Profiling

Supports precise heating at set rates (e.g., 1–2°C/min), fine-tuning during holding phases, and automatic suppression of exothermic peaks, ensuring batch-to-batch consistency.

3. Multiple Safety Interlock Mechanisms

Automatic Over-temperature/Over-pressure Relief and Cooling: Upon detecting limit violations, the system automatically cuts off the heat source and fully opens the cooling circuit.

Agitation Status Safety Interlock: If the agitator stops rotating or becomes overloaded, the system immediately halts heating to prevent safety incidents caused by localized material charring or intense, localized heat release.

Why choose our resin production line turnkey projects?

Constructing an efficient and safe resin production line is by no means a simple matter of assembling equipment; rather, it represents the deep integration of process technology, machinery, automation, and engineering installation.

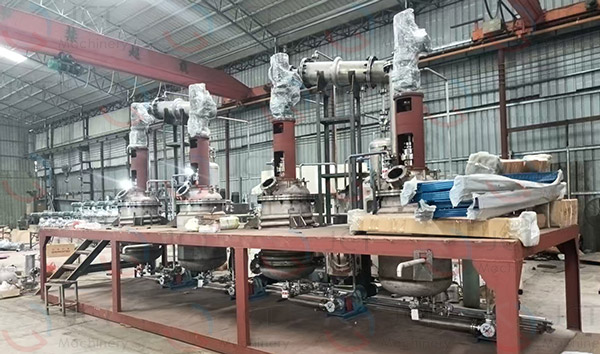

• End-to-end customization and experimental support: From scaling up lab/pilot data to designing Process and Instrumentation Diagrams (P&IDs), we support trial runs using your actual materials to ensure equipment specifications align perfectly with your specific formulations.
• Rigorous manufacturing standards: Our reactors and piping systems meet all compliance requirements (such as CE and Ex explosion-proof certifications), guaranteeing high-standard delivery.
• One-stop delivery to accelerate project timelines: We provide a comprehensive service—including facility planning, reactor and auxiliary equipment manufacturing, TCU temperature control integration, automation control cabinet assembly, on-site piping installation, and system-wide commissioning—saving you time and effort while enabling rapid production startup.

If you are planning a new resin production line or looking to upgrade the temperature control system of an existing reactor, please feel free to contact our engineering and technical team.
